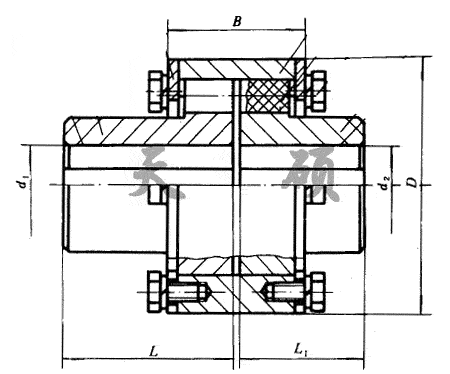

ZL型彈性柱銷齒式聯軸器基本參數和主要尺寸
| 型號 |
公稱扭矩
Tn(N.m) |
許用轉速
[n]r/min |
軸孔直徑 d 1 d2 |
軸孔配合長度 |
D |
B |
轉動慣量 Kg.m 2 |
質量 m Kg |
| Y型 |
J1 型 |
| L |
L 1 |
| ZL1 |
100 |
4000 |
12 14 |
32 |
27 |
76 |
42 |
0.0004 |
0.80 |
| 16 18 |
42 |
30 |
| 19 |
| 20 22 |
52 |
38 |
| 24 |
| ZL2 |
250 |
4000 |
16 18 |
42 |
30 |
92 |
50 |
0.003 |
3.23 |
| 19 |
| 20 22 |
52 |
38 |
| 24 |
| 25 28 |
62 |
44 |
| 30 32 |
82 |
60 |
| ZL3 |
630 |
4000 |
25 28 |
62 |
44 |
118 |
69 |
0.011 |
6.57 |
| 30 32 |
82 |
60 |
| 35 38 |
| 40 42 |
112 |
84 |
| ZL4 |
1600 |
4000 |
40 42 |
112 |
84 |
158 |
89 |
0.046 |
14.8 |
| 45 48 |
| 50 55 |
| 56 |
| 60 |
142 |
107 |
| ZL5 |
4000 |
4000 |
50 55 |
112 |
84 |
192 |
89 |
0.114 |
24.8 |
| 56 |
| 60 63 |
142 |
107 |
| 65 70 |
| 71 75 |
| 80 |
172 |
132 |
| ZL6 |
6300 |
3300 |
60 63 |
142 |
107 |
230 |
111 |
0.28 |
42.5 |
| 70 71 |
| 75 |
| 80 85 |
172 |
132 |
| 90 95 |
| ZL7 |
10000 |
2900 |
70 71 |
142 |
107 |
260 |
113 |
0.56 |
66.3 |
| 75 |
| 80 85 |
172 |
132 |
| 90 95 |
| 100 110 |
212 |
167 |
| ZL8 |
16000 |
2500 |
80 85 |
172 |
132 |
300 |
136 |
1.21 |
107.3 |
| 90 95 |
| 100 110 |
212 |
167 |
| 120 |
| 125 130 |
252 |
202 |
| ZL9 |
2500 0 |
2300 |
90 95 |
172 |
132 |
335 |
146 |
1.98 |
140.9 |
| 100 110 |
212 |
167 |
| 120 |
| 125 |
252 |
202 |
|
| ZL10 |
31500 |
2100 |
130 140 |
212 |
167 |
355 |
151 |
2.85 |
180.9 |
| 150 |
| 100 110 |
252 |
202 |
| 120 |
| 125 |
302 |
242 |
| 130 140 150 |
|
|
| ZL11 |
40000 |
2000 |
160 170 |
212 |
167 |
380 |
170 |
3.9 |
219.3 |
|
| 110 120 |
252 |
202 |
| 125 |
| 130 140 150 |
302 |
242 |
| 160 170 180 |
|
|
| ZL12 |
63000 |
1700 |
130 140 |
252 |
202 |
445 |
183 |
9.2 |
371.4 |
| 150 |
| 160 170 |
302 |
242 |
| 180 |
| 190 200 |
352 |
282 |
| ZL13 |
100000 |
1500 |
150 |
252 |
202 |
515 |
218 |
15.6 |
470 |
| 160 170 |
302 |
242 |
| 180 |
| 190 200 |
352 |
282 |
| 220 |
| 240 |
410 |
330 |
| ZL14 |
125000 |
1400 |
170 180 |
320 |
242 |
560 |
218 |
27.8 |
708 |
| 190 200 |
352 |
282 |
| 220 |
| 240 250 |
410 |
330 |
| 260 |
| ZL15 |
160000 |
1300 |
190 200 |
352 |
285 |
590 |
238 |
33.4 |
768 |
| 220 |
| 240 250 |
410 |
330 |
| 260 |
| 280 300 |
470 |
380 |
| ZL16 |
250000 |
100, 0 |
220 |
352 |
282 |
695 |
262 |
69.9 |
1169 |
| 240 250 |
410 |
330 |
| 260 |
| 280 300 |
470 |
380 |
| 320 |
| 340 |
550 |
450 |
| ZL17 |
315000 |
950 |
240 250 |
410 |
330 |
768 |
282 |
122.7 |
1664 |
| 260 |
| 280 300 |
470 |
380 |
| 320 |
| 340 360 |
550 |
450 |
| 380 |
| ZL18 |
400000 |
850 |
250 260 |
410 |
330 |
860 |
300 |
202.7 |
2193 |
| 280 300 |
470 |
380 |
| 320 |
| 340 360 |
550 |
450 |
| 380 |
| 400 420 |
650 |
540 |
| ZL19 |
630000 |
750 |
280 300 |
470 |
380 |
970 |
320 |
341.2 |
2901 |
| 320 |
| 340 360 |
550 |
450 |
| 380 |
| 400 420 |
650 |
540 |
| 440 450 |
| ZL20 |
1000000 |
650 |
320 |
470 |
380 |
1156 |
351 |
710 |
4251 |
| 340 360 |
550 |
450 |
| 380 |
| 400 420 |
650 |
540 |
| 440 450 |
| 460 480 |
| 500 |
| ZL21 |
1600000 |
530 |
380 |
550 |
450 |
1440 |
355 |
1948 |
7514 |
| 400 420 |
650 |
540 |
| 440 450 |
| 460 480 |
| 500 |
| 530 560 |
800 |
680 |
| 600 630 |
| ZL22 |
2000000 |
500 |
420 440 |
650 |
540 |
1520 |
396 |
2931 |
10148 |
| 450 460 |
| 480 500 |
| 530 560 |
800 |
680 |
| 600 630 |
| 670 710 |
900 |
780 |
| 750 |
| ZL23 |
2500000 |
460 |
480 500 |
650 |
540 |
1638 |
430 |
4379 |
13026 |
|
