 根據類型分類 |
|
|
|
|
鎖緊螺母KM00、鎖緊螺母KM01、鎖緊螺母KM02、鎖緊螺母KM03、鎖緊螺母KM04、鎖緊螺母KM05、鎖緊螺母KM06、鎖緊螺母KM07、鎖緊螺母KM08、鎖緊螺母KM09、鎖緊螺母KM10、鎖緊螺母KM11、鎖緊螺母KM12、鎖緊螺母KM13、鎖緊螺母KM14、鎖緊螺母KM15、鎖緊螺母KM16、鎖緊螺母KM17、鎖緊螺母KM18、鎖緊螺母KM19、鎖緊螺母KM20、鎖緊螺母KM21、鎖緊螺母KM22、鎖緊螺母KM23、鎖緊螺母KM24、鎖緊螺母KM25、鎖緊螺母KM26、鎖緊螺母KM27、鎖緊螺母KM28、鎖緊螺母KM29、鎖緊螺母KM30、鎖緊螺母KM32、鎖緊螺母KM32、鎖緊螺母KM33、鎖緊螺母KM34、鎖緊螺母KM36、鎖緊螺母KM38、鎖緊螺母KM40、鎖緊螺母KM44、鎖緊螺母KM48、鎖緊螺母KM52、鎖緊螺母KM60

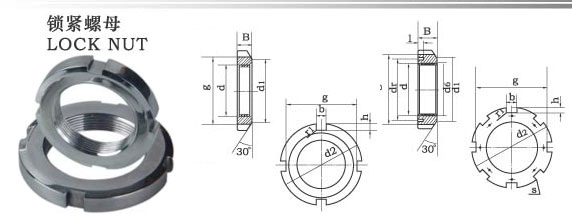

| 型號 |
基本尺寸（mm） |
重量(kg) |
| 螺紋D |
d2 |
B |
b |
h |
| KM00 |
M10X0.75 |
18 |
4 |
3 |
2 |
0.005 |
| KM01 |
M12X1 |
22 |
4 |
3 |
2 |
0.007 |
| KM02 |
M15X1 |
25 |
5 |
4 |
2 |
0.010 |
| KM03 |
M17X1 |
28 |
5 |
4 |
2 |
0.013 |
| KM04 |
M20X1 |
32 |
6 |
4 |
2 |
0.019 |
| KM05 |
M25X1.5 |
38 |
7 |
5 |
2 |
0.025 |
| KM06 |
M30X1.5 |
45 |
7 |
5 |
2 |
0.043 |
| KM07 |
M35X1.5 |
52 |
8 |
5 |
2 |
0.053 |
| KM08 |
M40X1.5 |
58 |
9 |
6 |
2.5 |
0.085 |
| KM09 |
M45X1.5 |
65 |
10 |
6 |
2.5 |
0.119 |
| KM10 |
M50X1.5 |
70 |
11 |
6 |
2.5 |
0.148 |
| KM11 |
M55X2 |
75 |
11 |
7 |
3 |
0.158 |
| KM12 |
M60X2 |
80 |
11 |
7 |
3 |
0.174 |
| KM13 |
M65X2 |
85 |
12 |
7 |
3 |
0.203 |
| KM14 |
M70X2 |
92 |
12 |
8 |
3.5 |
0.242 |
| KM15 |
M75X2 |
98 |
13 |
8 |
3.5 |
0.287 |
| KM16 |
M80X2 |
105 |
15 |
8 |
3.5 |
0.397 |
| KM17 |
M85X2 |
110 |
16 |
8 |
3.5 |
0.451 |
| KM18 |
M90X2 |
120 |
16 |
10 |
4 |
0.556 |
| KM19 |
M95X2 |
125 |
17 |
10 |
4 |
0.658 |
| KM20 |
M100X2 |
130 |
18 |
10 |
4 |
0.698 |
| KM21 |
M105X2 |
140 |
18 |
12 |
5 |
0.845 |
| KM22 |
M110X2 |
145 |
19 |
12 |
5 |
0.965 |
| KM23 |
M115X2 |
150 |
19 |
12 |
5 |
1.01 |
| KM24 |
M120X2 |
155 |
20 |
12 |
5 |
1.08 |
| KM25 |
M125X2 |
160 |
21 |
12 |
5 |
1.19 |
| KM26 |
M130X2 |
165 |
21 |
12 |
5 |
1.25 |
| KM27 |
M135X2 |
175 |
22 |
14 |
6 |
1.55 |
| KM28 |
M140X2 |
180 |
22 |
14 |
6 |
1.56 |
| KM29 |
M145X2 |
190 |
24 |
14 |
6 |
2.00 |
| KM30 |
M150X2 |
195 |
24 |
14 |
6 |
2.03 |
| KM31 |
M155X3 |
200 |
25 |
16 |
7 |
2.21 |
| KM32 |
M160X3 |
210 |
25 |
16 |
7 |
2.43 |
| KM33 |
M165X3 |
210 |
26 |
16 |
7 |
2.59 |
| KM34 |
M170X3 |
220 |
26 |
16 |
7 |
2.80 |
| KM36 |
M180X3 |
230 |
27 |
18 |
8 |
3.07 |
| KM38 |
M190X3 |
240 |
28 |
18 |
8 |
3.39 |
| KM40 |
M200X4 |
250 |
29 |
18 |
8 |
3.69 |
| KM44 |
Tr220X4 |
280 |
32 |
20 |
10 |
5.20 |
| KM48 |
Tr240X4 |
300 |
34 |
20 |
10 |
5.95 |
| KM52 |
Tr260X4 |
330 |
36 |
24 |
12 |
8.08 |
| KM56 |
Tr280X4 |
350 |
38 |
24 |
12 |
9.05 |
| KM60 |
Tr300X4 |
380 |
40 |
24 |
12 |
11.8 |
| KM64 |
Tr320X5 |
400 |
42 |
24 |
12 |
13.1 |
| KM68 |
Tr340X5 |
440 |
55 |
28 |
15 |
23.1 |
| KM72 |
Tr360X5 |
460 |
58 |
28 |
15 |
25.1 |
| KM76 |
Tr380X5 |
490 |
60 |
32 |
18 |
30.9 |
| KM80 |
Tr400X5 |
520 |
62 |
32 |
18 |
36.9 |
| KM84 |
Tr420X5 |
540 |
70 |
32 |
18 |
43.5 |
| KM88 |
Tr440X5 |
560 |
70 |
36 |
20 |
45.3 |
| KM92 |
Tr460X5 |
580 |
75 |
36 |
20 |
50.4 |
| KM96 |
Tr480X5 |
620 |
75 |
36 |
20 |
62.2 |
| KM500 |
Tr500X5 |
630 |
80 |
40 |
23 |
63.3 |
| KM510 |
Tr510X6 |
650 |
80 |
40 |
23 |
|
| KM530 |
Tr530X6 |
670 |
80 |
40 |
23 |
|
| KM550 |
Tr550X6 |
700 |
80 |
40 |
23 |
|
| KM560 |
Tr560X6 |
710 |
85 |
45 |
25 |
|
| KM600 |
Tr600X6 |
750 |
85 |
45 |
25 |
|
| KM630 |
Tr630X6 |
800 |
95 |
50 |
28 |
|
| KM670 |
Tr670X6 |
850 |
106 |
50 |
28 |
|
| KM710 |
Tr710X7 |
900 |
106 |
55 |
30 |
|
| KM750 |
Tr750X7 |
950 |
112 |
60 |
34 |
|
| KM800 |
Tr800X7 |
1000 |
112 |
60 |
34 |
|
| KM850 |
Tr850X7 |
1060 |
118 |
70 |
38 |
|
| KM900 |
Tr900X7 |
1120 |
125 |
70 |
38 |
|
| KM950 |
Tr950X8 |
1170 |
125 |
70 |
38 |
|
| KM1000 |
Tr1000X8 |
1240 |
125 |
70 |
38 |
|
| KM1060 |
Tr1060X8 |
1300 |
125 |
70 |
38 |
|
|
