104機械密封
104 |
適用范圍
密封腔壓力：P≤0～0.6MPa
密封腔溫度：t=-20℃～80(150)℃
線 速 度：Vg≤8m/s |
 |
■單端面
■非平衡型密封
■橡膠波紋管 |

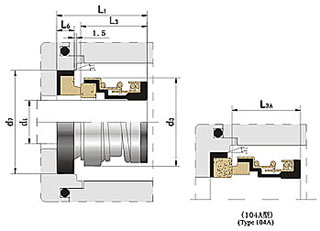

104 裝配尺寸 (mm) |
規格\ 尺寸 |
d1
(h6) |
d3
(max) |
d7
(H8) |
L1
(±0.5) |
L3 |
L3A |
L6 |
|
| 104-12 |
12 |
22.5 |
24 |
20.0 |
14.4 |
15.0 |
4.0 |
|
| 104-14 |
14 |
25.0 |
26 |
25.0 |
18.0 |
19.0 |
5.0 |
| 104-15 |
15 |
27.0 |
28 |
25.0 |
18.0 |
19.0 |
5.0 |
| 104-16 |
16 |
27.0 |
28 |
25.0 |
18.0 |
19.0 |
5.0 |
|
| 104-17 |
17 |
30.5 |
34 |
25.0 |
18.0 |
19.0 |
5.0 |
| 104-18 |
18 |
30.5 |
34 |
25.0 |
18.0 |
19.0 |
5.0 |
| 104-19 |
19 |
33.0 |
36 |
25.0 |
18.0 |
19.0 |
5.0 |
|
| 104-20 |
20 |
33.0 |
36 |
25.0 |
18.0 |
19.0 |
5.0 |
| 104-22 |
22 |
36.5 |
38 |
25.5 |
18.5 |
19.5 |
5.0 |
| 104-25 |
25 |
40.0 |
41 |
37.0 |
28.0 |
29.0 |
7.0 |
|
| 104-30 |
30 |
46.0 |
46 |
37.0 |
28.0 |
29.0 |
7.0 |
| 104-35 |
35 |
51.0 |
51 |
37.0 |
28.0 |
29.0 |
7.0 |
| 104-40 |
40 |
57.0 |
60 |
40.0 |
29.5 |
30.5 |
8.5 |
|
| 104-45 |
45 |
64.5 |
65 |
40.0 |
29.5 |
31.0 |
8.5 |
| 104-50 |
50 |
71.0 |
70 |
45.0 |
33.5 |
|
9.5 |
| 104-55 |
55 |
75.5 |
75 |
45.0 |
33.5 |
|
9.5 |
|
|
|
