適用范圍
密封腔壓力：P≤-0.1～1.6MPa
密封腔溫度：t=-20℃～140℃
線 速 度：Vg≤10m/s |
 |
■單端面、非平衡型密封
■橡膠波紋管
■符合DIN 24960標準 |

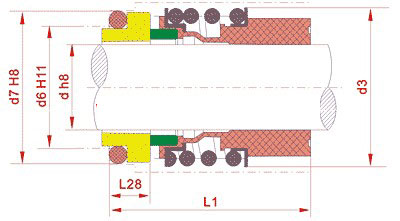

| MG13 裝配尺寸 (mm) |
規格\尺寸 |
d1
(h6) |
d3
(max) |
d6
(H11) |
d7
(H8) |
L33
(±0.5) |
L4 |
L5 |
L6
|
L10 |
|
| MG13-8 |
8 |
21.0 |
17 |
21 |
|
6.0 |
1.5 |
4.5 |
7.4 |
|
| MG13-10 |
10 |
22.5 |
17 |
21 |
33.4 |
6.6 |
1.5 |
4.5 |
7.5 |
| MG13-12 |
12 |
25.0 |
19 |
23 |
33.4 |
6.6 |
1.5 |
4.5 |
7.5 |
| MG13-14 |
14 |
28.5 |
21 |
25 |
33.4 |
6.6 |
1.5 |
4.5 |
7.5 |
|
| MG13-16 |
16 |
28.5 |
23 |
27 |
33.4 |
6.6 |
1.5 |
4.5 |
7.5 |
| MG13-18 |
18 |
32.0 |
27 |
33 |
37.5 |
7.5 |
2.0 |
5.5 |
8.5 |
| MG13-20 |
20 |
37.0 |
29 |
35 |
37.5 |
7.5 |
2.0 |
5.5 |
8.5 |
|
| MG13-22 |
22 |
37.0 |
31 |
37 |
37.5 |
7.5 |
2.0 |
5.5 |
8.5 |
| MG13-24 |
24 |
42.5 |
33 |
39 |
42.5 |
7.5 |
2.0 |
5.5 |
8.5 |
| MG13-25 |
25 |
42.5 |
34 |
40 |
42.5 |
7.5 |
2.0 |
5.5 |
8.5 |
|
| MG13-28 |
28 |
49.0 |
37 |
43 |
42.5 |
7.5 |
2.0 |
5.5 |
8.5 |
| MG13-30 |
30 |
49.0 |
39 |
45 |
42.5 |
7.5 |
2.0 |
5.5 |
8.5 |
| MG13-32 |
32 |
53.5 |
42 |
48 |
47.5 |
7.5 |
2.0 |
5.5 |
8.5 |
|
| MG13-33 |
33 |
53.5 |
42 |
48 |
47.5 |
7.5 |
2.0 |
5.5 |
8.5 |
| MG13-35 |
35 |
57.0 |
44 |
50 |
47.5 |
7.5 |
2.0 |
5.5 |
8.5 |
| MG13-38 |
38 |
59.0 |
49 |
56 |
46.0 |
9.0 |
2.0 |
6.5 |
10.0 |
|
| MG13-40 |
40 |
62.0 |
51 |
58 |
46.0 |
9.0 |
2.0 |
6.5 |
10.0 |
| MG13-43 |
43 |
65.5 |
54 |
61 |
51.0 |
9.0 |
2.0 |
6.5 |
10.0 |
| MG13-45 |
45 |
68.0 |
56 |
63 |
51.0 |
9.0 |
2.0 |
6.5 |
10.0 |
|
| MG13-48 |
48 |
70.5 |
59 |
99 |
51.0 |
9.0 |
2.0 |
6.5 |
10.0 |
| MG13-50 |
50 |
74.0 |
62 |
70 |
50.5 |
9.5 |
2.5 |
6.5 |
10.5 |
| MG13-53 |
53 |
78.5 |
65 |
73 |
59.0 |
11.0 |
2.5 |
6.5 |
12.0 |
|
| MG13-55 |
55 |
81.0 |
67 |
75 |
59.0 |
11.0 |
2.5 |
6.5 |
12.0 |
| MG13-58 |
58 |
85.5 |
70 |
78 |
59.0 |
11.0 |
2.5 |
6.5 |
12.0 |
| MG13-60 |
60 |
88.5 |
72 |
80 |
59.0 |
11.0 |
2.5 |
6.5 |
12.0 |
|
| MG13-65 |
65 |
93.5 |
77 |
85 |
69.0 |
11.0 |
2.5 |
6.5 |
12.0 |
| MG13-68 |
68 |
96.5 |
81 |
90 |
68.7 |
11.3 |
2.5 |
7.5 |
12.5 |
| MG13-70 |
70 |
99.5 |
83 |
92 |
68.7 |
11.3 |
2.5 |
7.5 |
12.5 |
|
| MG13-85 |
85 |
120 |
100 |
110 |
76.0 |
14.0 |
3.0 |
7.5 |
15.0 |
|
